Create Offset Text (Existing Vertices)

Description

Create dynamic text objects that display the perpendicular offset distance from a reference line (defined by two vertices) to a vertex.

Access

Home / Tools / Create / Text / Offset / Existing Vertices

Requirements

Solve module

Controls

The following controls are available:

Control	Description
Style	Select the offset text style to use for the text.
Start	Input a vertex on the reference line.
End	Input a vertex on the reference line.
Vertex	Input a vertex to create text for.

Notes

Use this method to create offset text from the projection of a line segment in a multi-segmented line.
Offset text objects are dynamically updated if any of the vertices are moved.
The reference line may be projected beyond the start and end vertex.

Diagrams

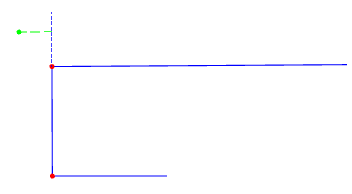

Offset by Existing Vertices
		Line Projected Reference Line Projected Offset Vertex Start/End
