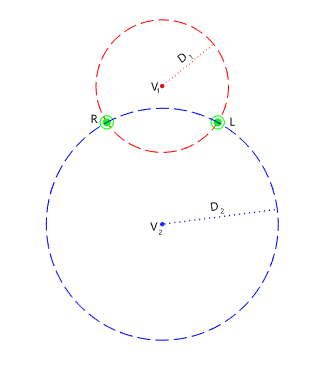

Computes a vertex at the intersection of the distances from two vertices.
Home / Tools / Create / Point / Distance Intersection
Home / Tools / Create / Line or Polygon / Straight or Spline/ Distance Intersection
Solve module
| Control | Description |
|---|---|
| Name | Type the name to assign to the created object or click  to use the next available auto incremented name. |
| From | Input the from vertex (V1). |
| Distance | Input the distance (D1) from the first From vertex. |
| From | Input the from vertex (V2). |
| Distance | Input the distance (D2) from the second From point. |
| Height Method | Select one of the following methods to input a height for the vertex: |
| Alternate solution |
Select or clear the checkbox to display the alternate solution. |
- Use to create point, line and polygon objects.
- Configure the Distance Type in Unit Options.
- The height is computed from the first From vertex.
