Compute a vertex by distance and offset intersection.
Home / Tools / Create / Point / Distance and Offset Intersection
Home / Tools / Create / Line/ Straight or Spline / Distance and Offset Intersection
Solve module
| Control | Description |
|---|---|
| Name | Type the name to assign to the created object or click  to use the next available auto incremented name. |
| From | Input the from vertex (V1) for the reference line. |
| Bearing |
Input the bearing from the From vertex of the reference line. |
| Offset | Input the offset (D1) from the reference line. |
| From | Input the from vertex (V2) for the distance. |
| Distance | Input the distance (D2) from the second From point. |
| Height Method | Select one of the following methods to input a height for the vertex: |
| Alternate solution |
Select or clear the checkbox to display the alternate solution. |

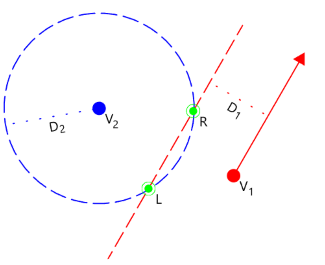

- A vertex is computed at the intersection of the offset from a line and the distance from a vertex.
- Use during the creation of point and line objects.
- A negative offset indicates the offset is to the left of the reference line.
- Configure Distance Type and Direction Type in Unit Options.
- The height is computed from the second From vertex.
