Exclude the point from a join sequence.
A point with the same code as a current line sequence.
Control Code Definition
A control code action 'Join Skip' is given the value 'JSK'.

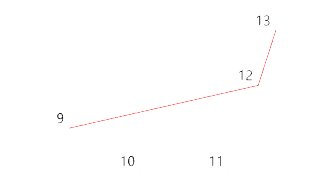

Measured Points
The first point (pt 9) is assigned a code 'TOB ST, where 'TOB' is the feature code for top of bank and 'ST' starts a line sequence.
The second point (pt 10) is assigned the code 'FCE'.
The third point (pt 11) is assigned the code 'TOB JSK' so is excluded from the top of bank line sequence.
The remaining points (pts 12 and 13) are assigned the code 'TOB' and are included in the top of bank line sequence.
- The 'Join Skip' control code action must be used within a join sequence.
